1.Material:inconel 600,601,625,750,800,825 etc.
2.Mesh Count:2-200mesh
3.Weave Pattern: Plain weave, Twill weave
4.Features: Intense mechanical strength:
tensile strength, fatigue strength and creep-rupturing
Good weldable character, restricts post weld age cracking.
Oxidation resistance at the numerous temperatures limits
Remarkable resistance to corrosion. Non-magnetic nature
5.Application:Inconel wire mesh is widely used in Petrochemical, aerospace industry, hydropower, nuclear power, oil refining and shipbuilding, onshore and offshore oil and gas, pulp and paper, chemical fiber, machinery equipment manufacturing industry and the change of heat exchangers and other products, highly recognized by customers.
6.Packing:inside the roll with "paper tube" to reduce the pressure while loading, then wrapped with "plastic film" as well as "woven bag" on the finished roll, final loaded in the strong wooden case
7.Specification:
|

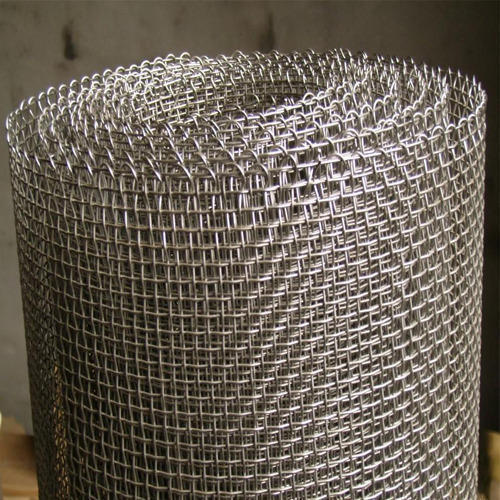

Inconel wire mesh
|
||
|
Mesh
|
Wire Diameter(mm)
|
Aperture(mm)
|
|
2
|
1.80
|
10.90
|
|
3
|
1.60
|
6.866
|
|
4
|
1.20
|
5.15
|
|
5
|
0.91
|
4.17
|
|
6
|
0.80
|
3.433
|
|
8
|
0.60
|
2.575
|
|
10
|
0.55
|
1.990
|
|
12
|
0.50
|
1.616
|
|
14
|
0.45
|
1.362
|
|
16
|
0.40
|
1.188
|
|
18
|
0.35
|
1.060
|
|
20
|
0.30
|
0.970
|
|
26
|
0.28
|
0.696
|
|
30
|
0.25
|
0.596
|
|
40
|
0.21
|
0.425
|
|
50
|
0.19
|
0.318
|
|
60
|
0.15
|
0.273
|
|
70
|
0.14
|
0.223
|
|
80
|
0.12
|
0.198
|
|
90
|
0.11
|
0.172
|
|
100
|
0.10
|
0.154
|
|
120
|
0.08
|
0.132
|
|
140
|
0.07
|
0.111
|
|
150
|
0.065
|
0.104
|
|
160
|
0.065
|
0.094
|
|
180
|
0.053
|
0.088
|
|
200
|
0.053
|
0.074
|
