This kind of belt is also called Flat Wire Belt,flat wire belting; and Honey Comb Conveyor Belts

Flat Wire Conveyor Belts - Clinched Edge & Weld Edge

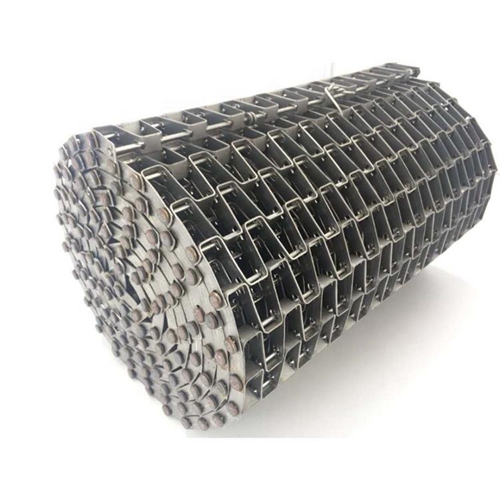

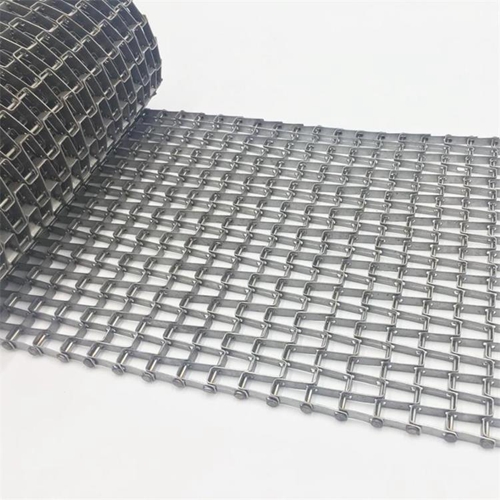

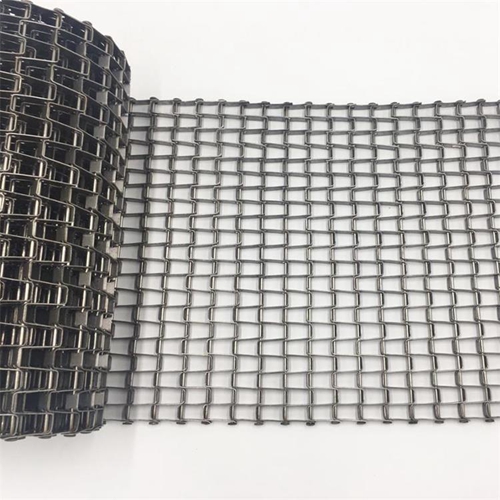

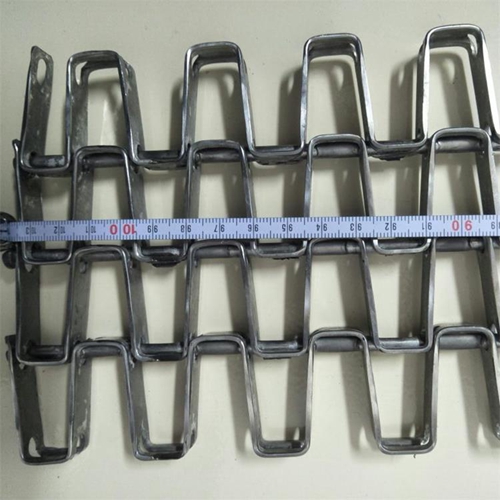

Flat wire conveyor belts, constructed of cross rods and flat metal strips, can provide an open mesh with flat surface, endless splicing, easy air circulation, excellent fluid drainage as well as ease of cleaning. Meanwhile, they are easy to maintain just replacing the section that is damaged or worn down.

Two styles of belt edges:

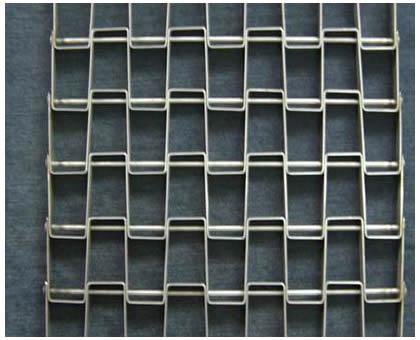

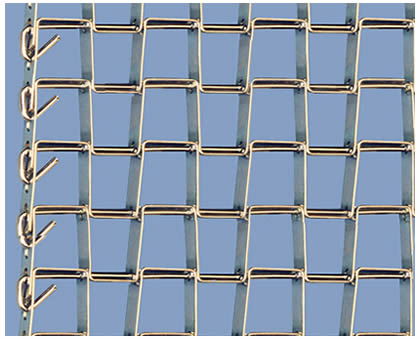

The selvages the flat wire conveyor belts are available in clinched edge and welded edge as shown in the picture:

Details:

• Material: carbon steel, SS 201, SS 304, SS 316.
• Spiral pitch: 12.7 mm to 40 mm.
• Rod pitch: 12.7 mm, 25.4 mm, 38.1 mm, 50.8 mm.
• Rod diameter: 3 mm, 4 mm, 5 mm, 6 mm, 8 mm.
• Belt width: 200 mm to 4000 mm.
• Open size: 1" × 1", 1/2" × 1", 1/2" × 1/2".
• Belt speed: from less than 1 m/min to 25 m/min.
• Temperature range: -30 °C to 400 °C.
• Accessories:flight clips, lane dividers, edge guards or pin up attachments, etc.

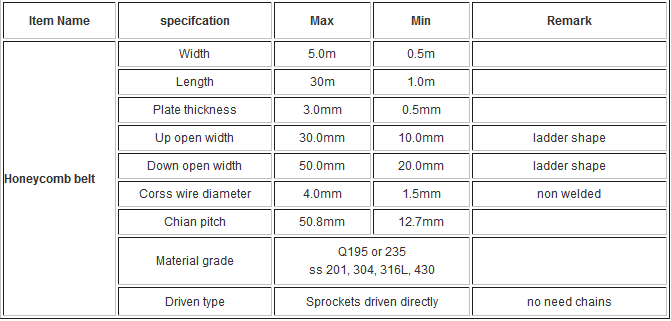

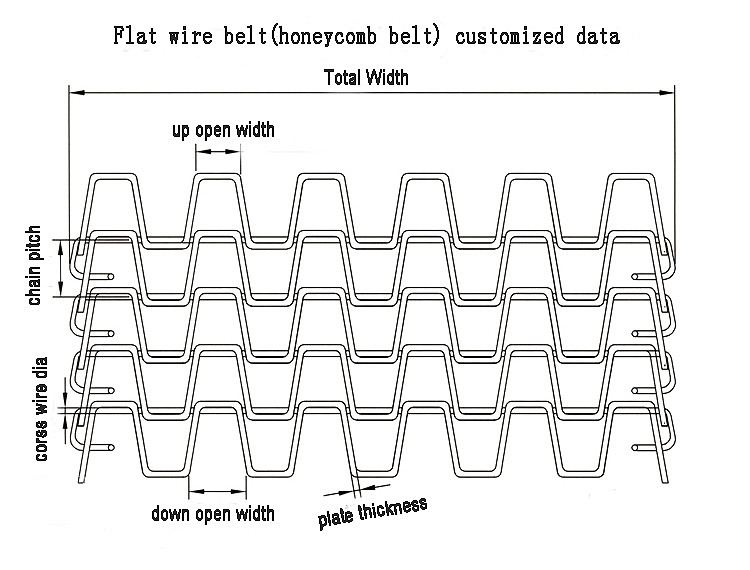

Specification:
The description of flat wire conveyor belts is followed by its load capacity. Normally, there are standard duty belts and heavy duty belts for our customer to choose from according to their different needs. The standard duty type is sufficient for most applications and heavy duty type is ideal for heavy product conveying and some tougher conditions.

As your request, radius flat wire conveyor belts can also be supplied with right and left turn up to 180 degrees and reinforcing links to strengthen the outside edges of the belt. Its turning ability makes the belt capable to operate in limited space without obstacles and troublesome transfers.
